A
Text-based visual CoT
“42”“.”“2”“,”“521”“.”“6”
Geometry becomes language.
Token cross-entropy ignores spatial proximity and fragments numbers into unrelated pieces.
NeurIPS 2026 Oral · Top 0.4%
Thinking with images
as continuous actions.
Numerical Visual Chain-of-Thought expands multimodal language models beyond discrete tokens—letting them point, zoom, and reason with precise numerical coordinates.

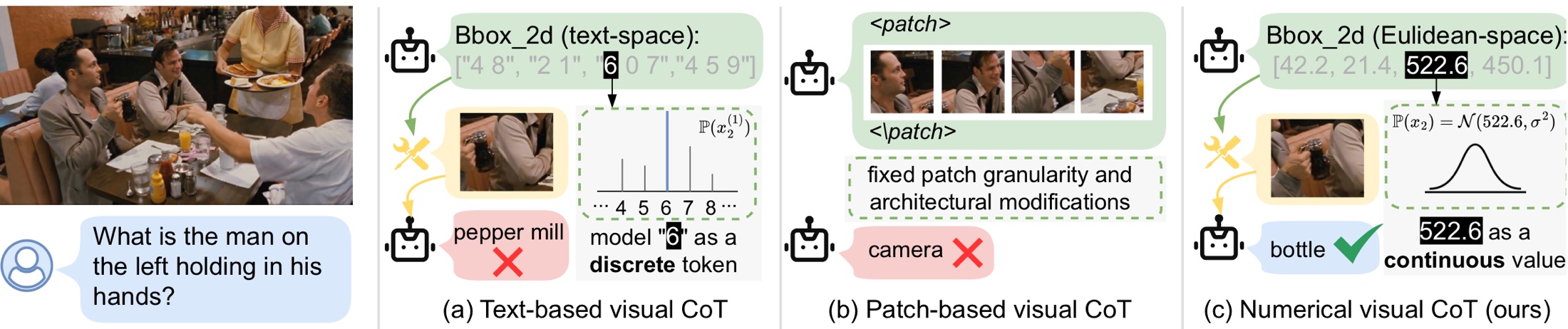

Fig. 01 Coordinates are geometry—not words.
NeurIPS 2026 Oral✦Continuous coordinates✦Gaussian / Laplace policy✦
SFT + GRPO✦Minimal architecture change✦
NeurIPS 2026 Oral✦Continuous coordinates✦Gaussian / Laplace policy✦
SFT + GRPO✦Minimal architecture change✦
01 — The idea
A coordinate should know
how close it is.
Text tokens flatten geometry. Fixed patches quantize it. NV-CoT keeps localization where it naturally lives: a continuous Euclidean action space.
B
Patch-based visual CoT
Reasoning snaps to a grid.
Fixed visual granularity constrains precise region selection and often requires deeper model changes.
C
NV-CoT · ours
[42.2, 21.4, 522.6, 450.1]
Point directly in ℝ⁴.
A lightweight coordinate head predicts boxes as continuous actions, preserving geometric structure.
02
02 — Abstract
Recent multimodal large language models increasingly rely on visual chain-of-thought for region-grounded reasoning. Yet existing methods either serialize coordinates as text—creating modality mismatch and semantic fragmentation—or operate on fixed-granularity visual patches.
NV-CoT expands the model action space from discrete vocabulary tokens to continuous numerical coordinates. With lightweight coordinate heads, Gaussian or Laplace policies, and reparameterized sampling, it supports both supervised fine-tuning and GRPO-style reinforcement learning. Experiments across three high-resolution benchmarks show improved localization, final-answer accuracy, and convergence speed.
Read the full paper03 — Method
One model.
Two action spaces.
NV-CoT retains the language vocabulary while adding a compact continuous head. The model can speak in tokens and act in coordinates—inside the same reasoning trajectory.
INPUT
image I₀
“What is he holding?”
01
MLLM πθ
h ∈ ℝᴰ
Shared hidden representation
02
LANGUAGE
p(token | h)
categorical vocabulary
COORDINATES
μ = Wh
Gaussian / Laplace policy
03
ACTION
b = μ + σε
sample → crop → inspect
Supervised fine-tuning
Coordinate positions use a regression objective while language positions retain standard cross-entropy.
Reparameterized exploration
The model predicts location and uncertainty, then samples differentiable coordinate actions.
GRPO compatible
Analytic likelihood ratios and KL terms bring continuous actions into the standard RL pipeline.
04 — Results
Sharper grounding.
Stronger answers.
Across high-resolution reasoning benchmarks, replacing textified boxes with continuous actions improves both where the model looks and what it concludes.
BBox IoU · Vis-CoT-363K
59.5%
NV-CoT ℓ₁+12.2vs. Vis-CoT
V* Bench · overall
91.6
NV-CoT RL · multi-step
HR-Bench 4K · overall
76.0
NV-CoT RL · multi-step
HR-Bench 8K · overall
73.8
NV-CoT RL · multi-step
Base model
86.4
+ NV-CoT
89.0
Single-call RL setting · DeepEyes-7B backbone

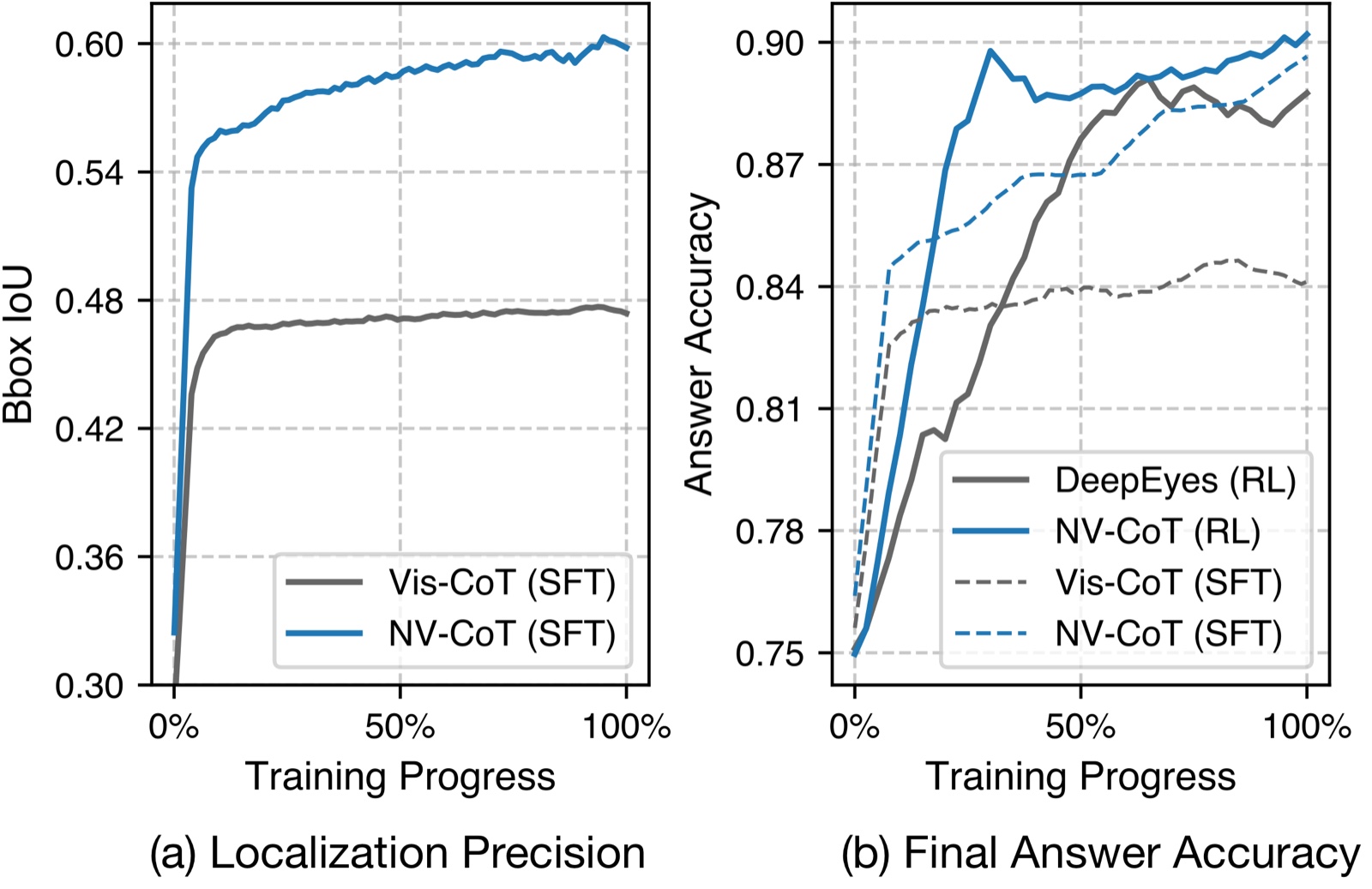

Training dynamics
Better, earlier.
Continuous coordinate learning improves localization precision and reaches higher answer accuracy faster than text-coordinate baselines.

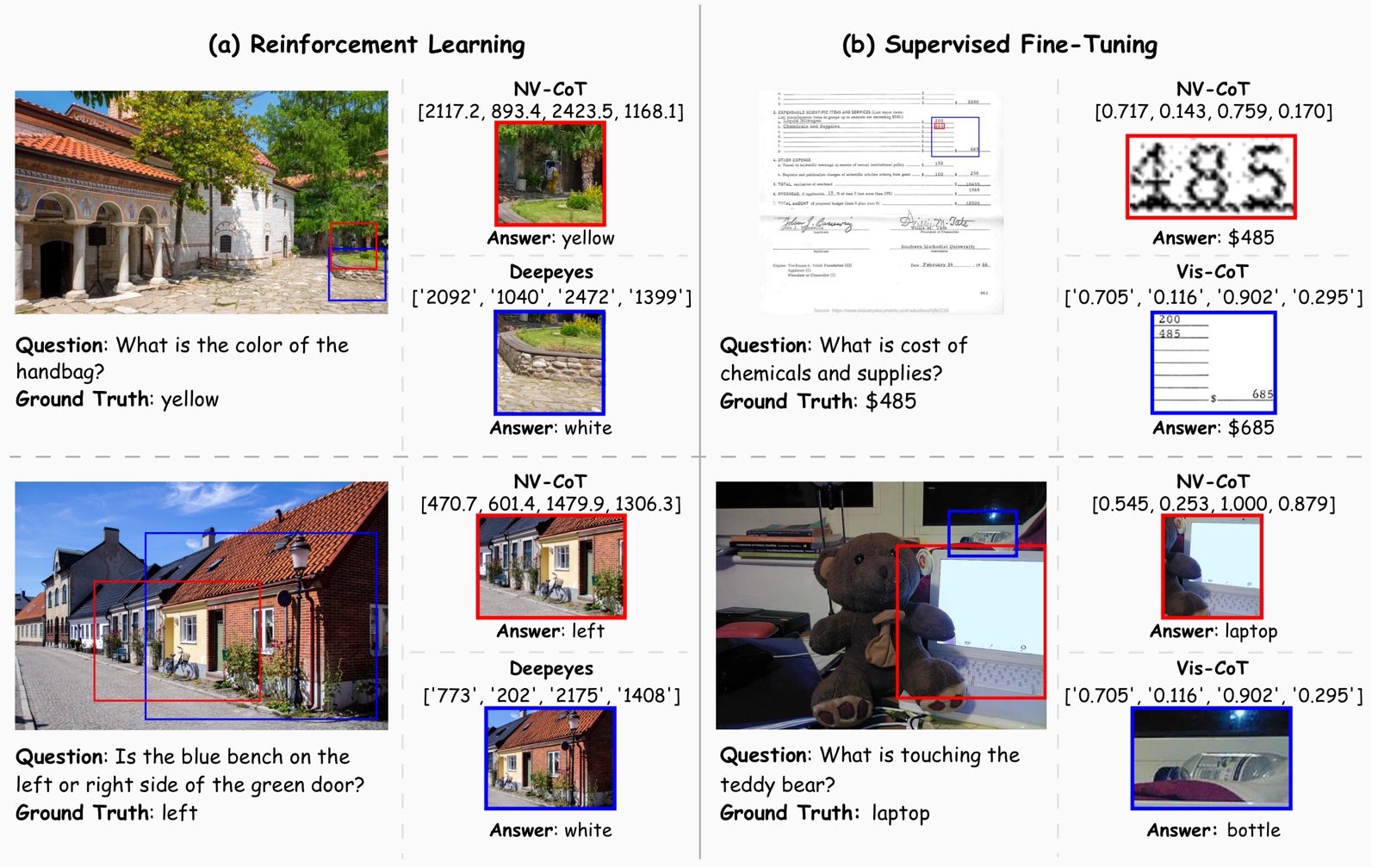

05 — Qualitative results
The right crop changes the answer.
NV-CoT selects tighter, semantically relevant regions across natural scenes, documents, spatial questions, and OCR-heavy examples.
06 — Citation
Build on
continuous vision.
If NV-CoT helps your research, please cite the paper.
BibTeX
@article{zhao2026thinking,
title={Thinking with Images as Continuous Actions:
Numerical Visual Chain-of-Thought},
author={Zhao, Kesen and Zhu, Beier and Zhou, Junbao
and Zhu, Xingyu and Yue, Zhongqi and Zhang, Hanwang},
journal={arXiv preprint arXiv:2602.23959},
year={2026}
}
